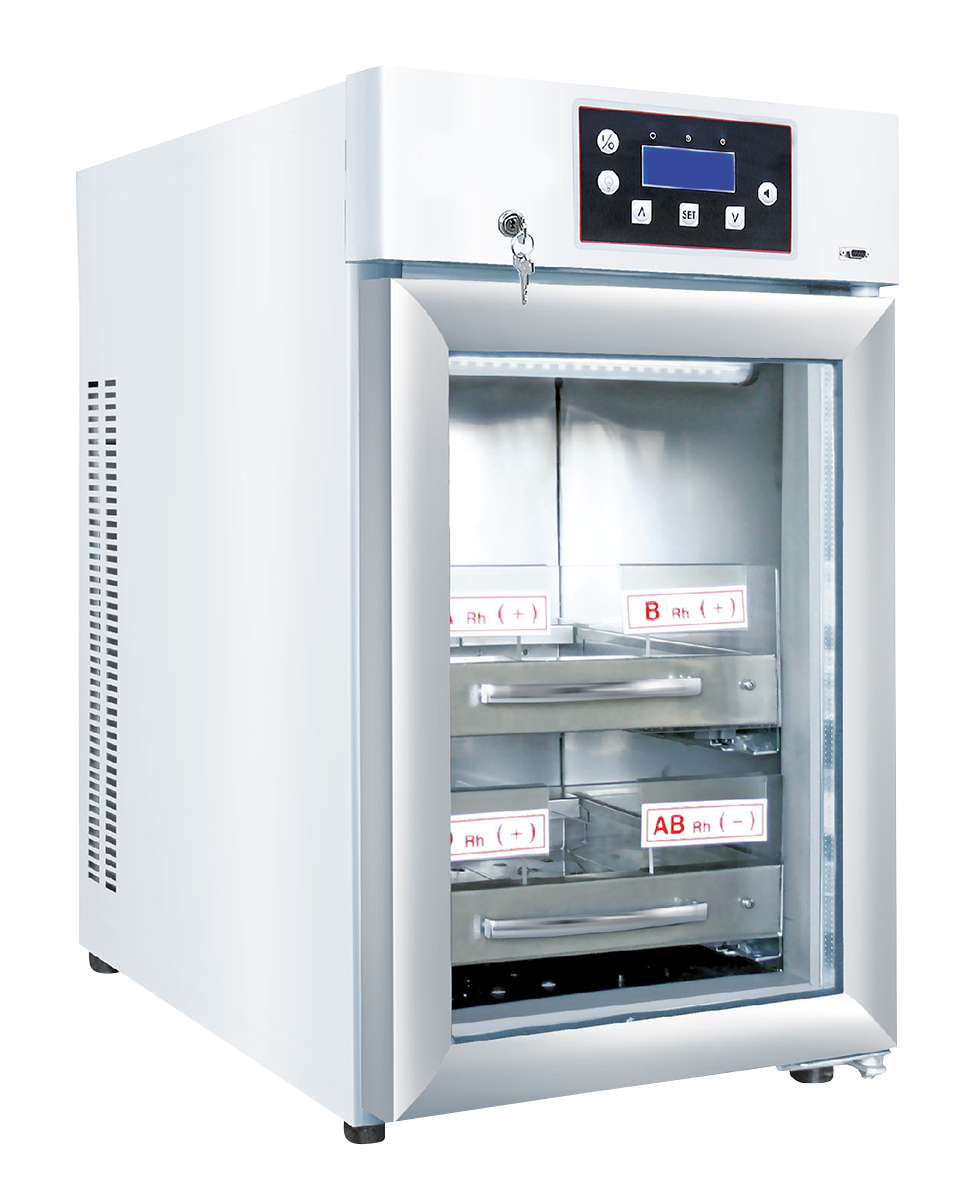

Blood bank refrigerator KBR-A100

Blood bank refrigerator KBR-A100 is medical refrigerator designed to store blood components within a temperature range of 2°C to 8°C. Thermostat-based microprocessor enables precise temperature control, auto defrost, real-time temperature trends and alarms. Galvanized steel exterior with Cr-Ni interior improves durability.

Specifications :

Available Options	I II III IV V VI
Storage Capacity	25 bags (450 ml each) 50 bags (450 ml each) 100 bags (450 ml each) 200 bags (450 ml each) 300 bags (450 ml each) 600 bags (450 ml each)
Internal Dimensions	350 x 370 x 520 mm 543 x 516 x 595 mm 543 x 516 x 797 mm 543 x 516 x 1391 mm 685 x 690 x 1350 mm 690 x 1370 x 1350 mm
External Dimensions	655 x 450 x 765 mm 594 x 600 x 1230 mm 594 x 600 x 1230 mm 594 x 600 x 2000 mm 820 x 765 x 2000 mm 820 x 1450 x 2000 mm
Temperature Range	2°C to 8°C, Factory set 4°C
Sensitivity	0.1°C
Storage Platform	Pool-type S.S. shelf system
Refrigeration	Forced cooling
Data Storage	Up to 30 days
Connectivity	USB port
Temperature Sensor	PT 100 RTD sensors
Power Supply	195 V - 230 V / 50 Hz
Cabinet Drawer	2 2 3 6 6 12
Weight	53 Kgs 92 Kgs 100 Kgs 147 Kgs 225 Kgs 450 Kgs

Features :

•   Rapid CFC-free cooling technology
•   Double-glazed insulation with magnetic gasket
•   Automatic charging for power back up
•   Auto-cut off (Fan and Agitator) for open door detection
•   Alarm: Temperature limits, Open door, Low voltage, Power Failure
•   Interior chamber lighting
•   Thermal printer (optional)

APPLICATIONS :

Used in hospital blood banks, blood transfusion centers for controlled temperature storage to reliably store and preserve blood at low temperatures without tampering for emergency transfusions.
