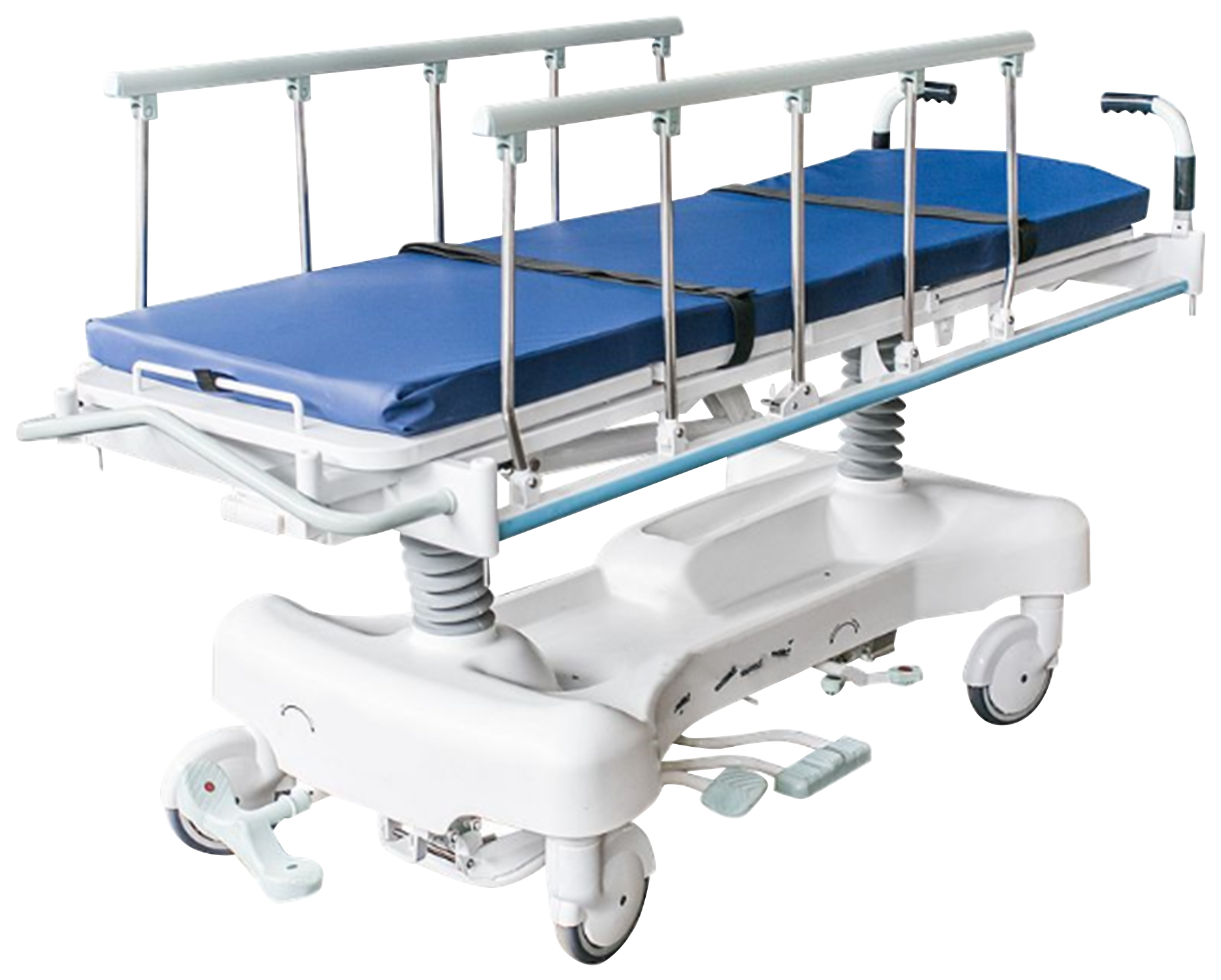

Hydraulic Stretcher KHS-A100

KHS-A100 is a functional stretcher with a provision of five movements namely backrest and footrest movement, height adjustment, trendelenburg and anti-trendelenburg position control. Equipped with two separate hydraulic pumps for effortless lifting operation and hydraulic control panel for operational monitoring and controlling.

Specifications :

Trendelenburg	12 °
Variable height	630 to 950 mm
Anti-trendelenburg	12 °
Weight capacity	250 Kgs
Backrest upward angle	75 °
Footrest upward angle	45 °
Castor diameter	200 mm
Mattress thickness	60 mm
Dimensions	2100 mm × 850 mm × 630 - 950 mm

Features :

•   Two separate sets of hydraulic pumps
•   Spring controlled back section, manually controlled foot rest
•   Aluminum alloy handrails provide safety protection
•   CPR handle at head side for quickly lowering the head section
•   Back board with x-ray cassette for imaging with electric panel
•   Cold-rolled steel tube frames
•   Steel, electrostatic powder coated mattress surface
•   Rise and fall fifth guide wheels ensure shock proof
•   PU cover water proof mattress with straps prevent dust mites and allergies
•   IV pole, IV pole holders
•   ABS base cover with oxygen cylinder holder
•   Central locking function

APPLICATIONS :

Used in hospitals and clinics to move the patient’s and to lift the patient with spinal cord injury.
