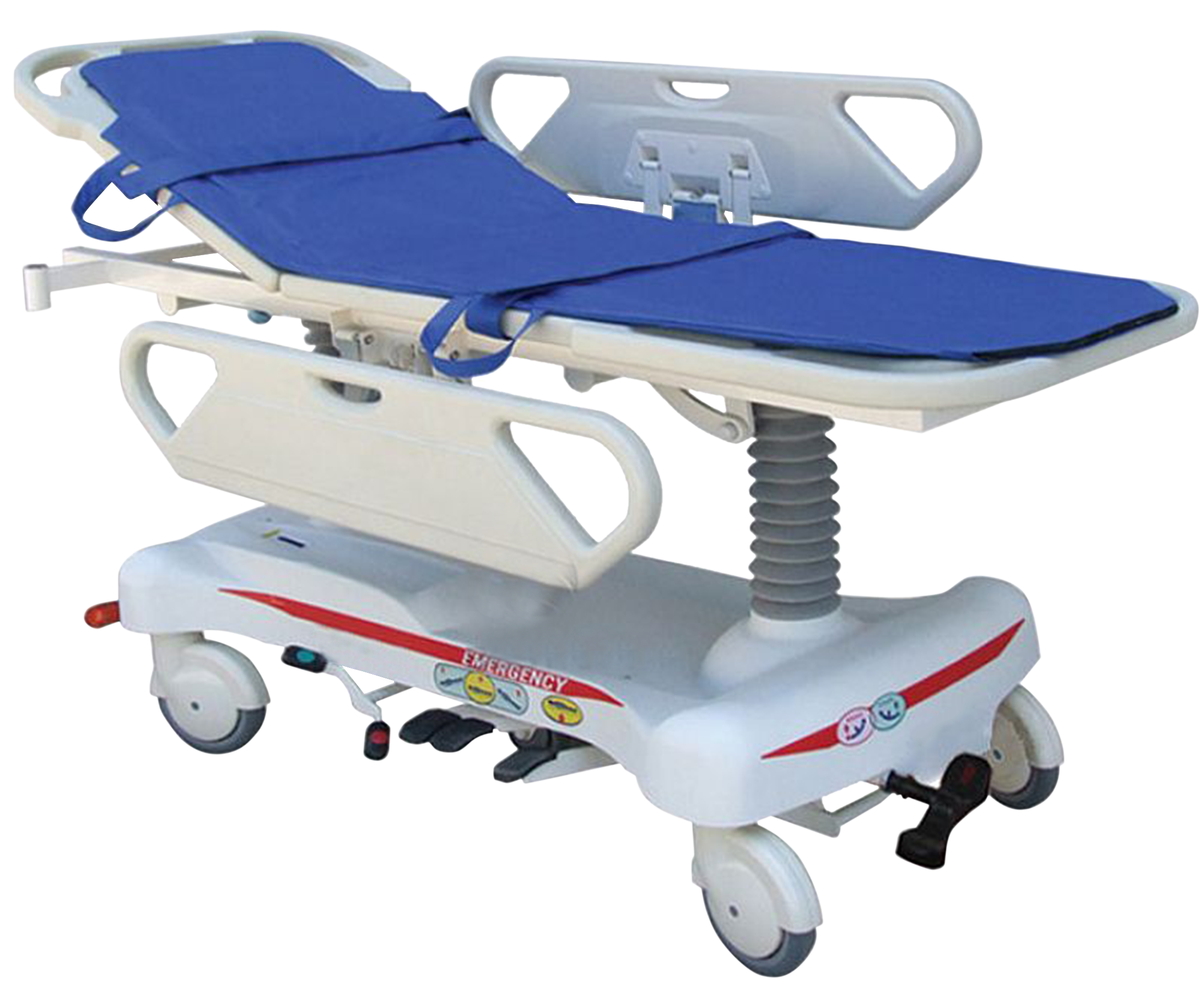

Hydraulic Stretcher KHS-A101

KHS-A101 is a functional stretcher with a provision of four movements namely height adjustment, trendelenburg and anti-trendelenburg position controlled by hydraulic pump and manual backrest control. Equipped with 2 separate hydraulic pumps for lifting operation and Hydraulic control panel for monitoring and controlling operation.

Specifications :

Trendelenburg	12 °
Variable height	630 to 900 mm
Anti-trendelenburg	12 °
Weight capacity	250 Kgs
Backrest upward angle	75 °
Castor diameter	200 mm
Mattress thickness	60 mm
Dimensions	1930 mm × 700 mm × 630 - 930 mm

Features :

•   Two separate sets of hydraulic pumps
•   Spring controlled back section
•   ABS handrails and mattress surface
•   CPR handle at head side for quickly lowering the head section
•   Cold-rolled steel tube, electrostatic powder coated frames
•   Rise and fall fifth guide wheels ensure shock proof
•   Water proof mattress with straps prevent dust mites and allergies
•   IV pole, IV pole holders
•   ABS base cover with oxygen cylinder holder
•   Central locking function

APPLICATIONS :

Used in hospitals and clinics to move the patient’s and to lift the patient with spinal cord injury.
