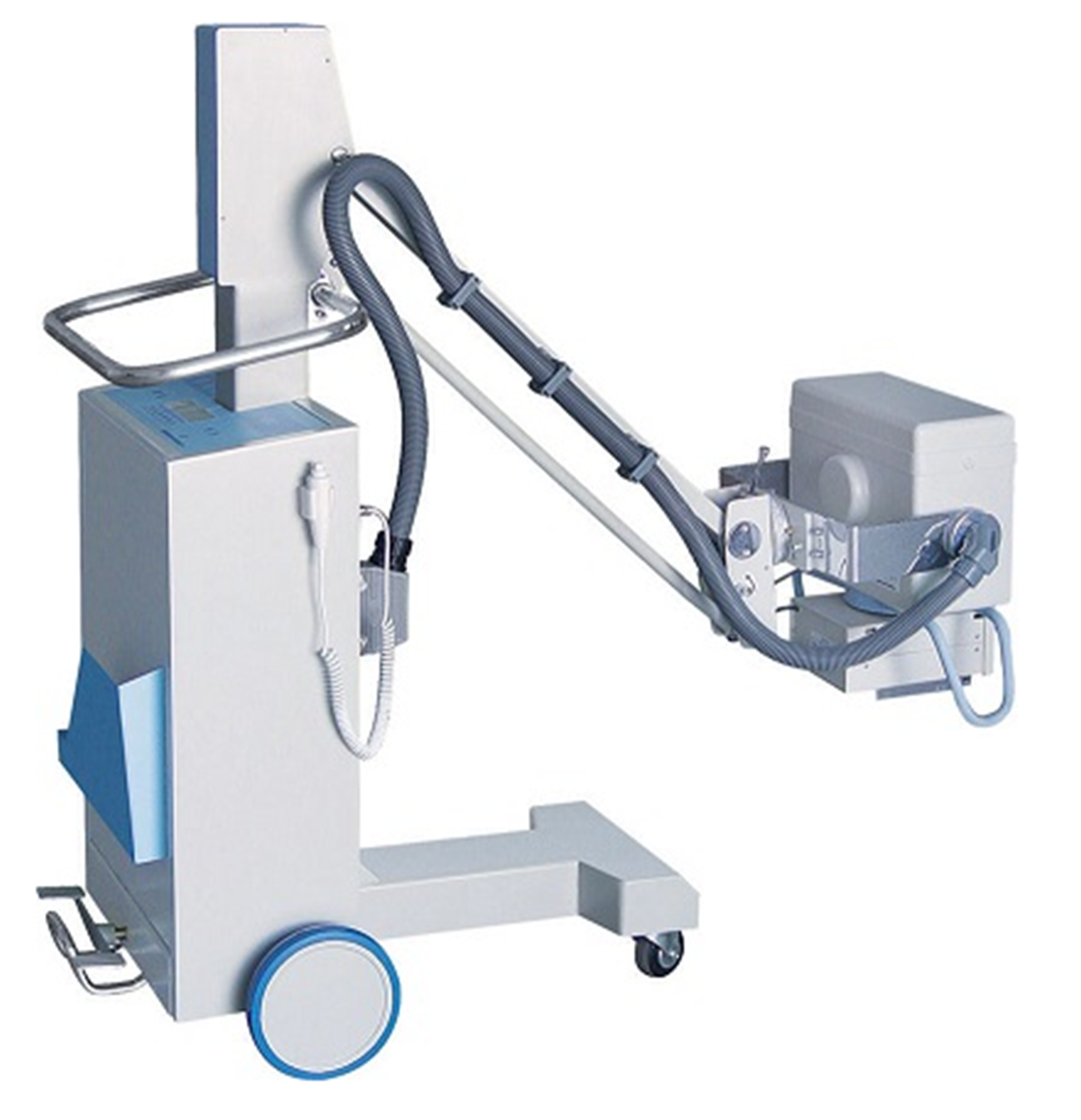

Mobile X-ray machine KMX-B102

Mobile X-ray machine KMX-B102 is an advanced x-ray imaging modality designed for better mobility and manageability during intra-hospital transit. System is equipped with 50 pre-set exposure programs with automatic back-up memory and multiple protection functions for safer use. Automatic self-test setting and alarming reduces need for maintenance. Proximal as well as remote accessibility controllers make it more versatile to use.

Specifications :

Inverter Frequency	50 kHz
Tube Voltage	40 kV – 100 kV (interval 1 kV)
Operational Access	Wired/Wireless Control
Current	1.0–125 mAs (43 steps)
Power Rating	3.5 kVA
Internal Resistance	≤ 1 Ω
Exposure Parameters	Voltage Current Radiographic Density 40 kV - 49 kV 63 mA 1 mAs - 125 mAs 50 kV - 59 kV 55 mA 1 mAs - 110 mAs 60 kV - 69 kV 45 mA 1 mAs - 90 mAs 70 kV - 79 kV 40 mA 1 mAs - 80 mAs 80 kV - 89 kV 36 mA 1 mAs - 71 mAs 90 kV - 99 kV 32 mA 1 mAs - 63 mAs 100 kV - 110 kV 20 mA 1 mAs - 40 mAs
Power Supply	Voltage : 220 V ±10% Frequency : 50Hz
Dimensions	1220 x 900 x 1460 mm
Weight	207 Kgs

Features :

•   High frequency X-ray generation
•   High quality X-ray monolight technology
•   Exposure current: 1.0-180mAs (46 steps)
•   50 built-in exposure control programs
•   Accurate X-ray penetration
•   Flexible and easy source orientation
•   Symmetrical collimator
•   Mobile table (optional)

APPLICATIONS :

Used throughout the hospital from in-patient, to NICU, operating room, and emergency room as well as polyclinics to perform projection radiography readily on bedbound or critical patients for convenience.
